HardwareEdge gateway with cellular, wifi and ethernet.
Gateway
Gets the data out of the equipment you already run. Gateway reads OPC UA, Modbus, BACnet, CAN and MQTT, and sends it to Millwright over cellular or Wi-Fi.
- Width
- 110mm
- Height
- 110mm
- Depth
- 32mm
- Model
- MW-IG-1000
01Features
What it does.
Speaks your protocols
OPC UA, Modbus, BACnet, CAN and MQTT from a single box.
Its own connection
4G/5G or Wi-Fi, encrypted end to end.
Buffers at the edge
Readings are stored and processed locally. When the link drops, the history fills in once it returns.
Industrial I/O
RS485, CAN and digital I/O on the base. Runs on anything from 9 to 36 V DC.
02On site
See it in action.

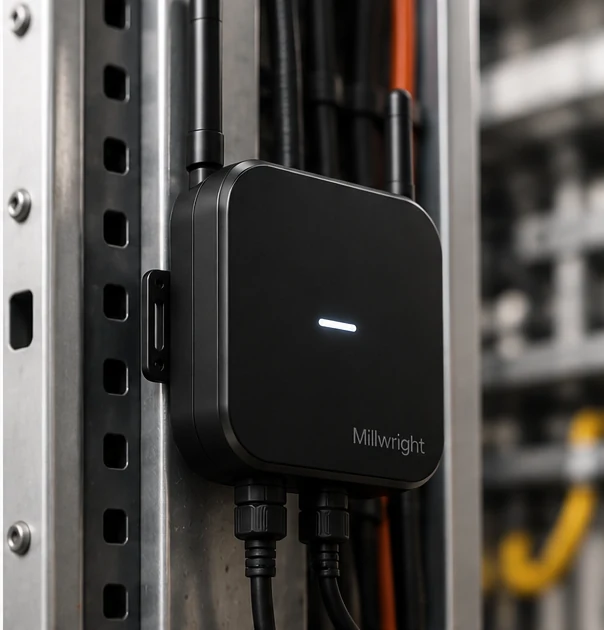

Gateway mounted on a rack upright, with its cables running down into the cabinet.
03Specifications
The details.
- Power
- 9 to 36 V DC
- Network
- 4G/5G cellular, Wi-Fi, Ethernet (optional)
- Industrial I/O
- RS485, CAN, DI/DO
- Protocols
- OPC UA, Modbus, BACnet, CAN, MQTT
- Mounting
- Flanged, rack or wall
- Availability
- Q2 2027
04Roadmap
The rest of the lineup.
The sensors and Gateway ship together in Q2 2027 for the machines that lack cloud telemetry. Millwright One, a dispatchable maintenance robot follows in Q1 2028.
Q2 2027
Sense
Clip-on sensors for vibration and current, plus Gateway for the PLCs and meters already on site. One install puts a plant on the platform, with no shutdown.
Q1 2028
Act
Millwright One walks up to the equipment and does the actual manual work. Inspections, resets and part swaps arrive as work orders from the platform.
